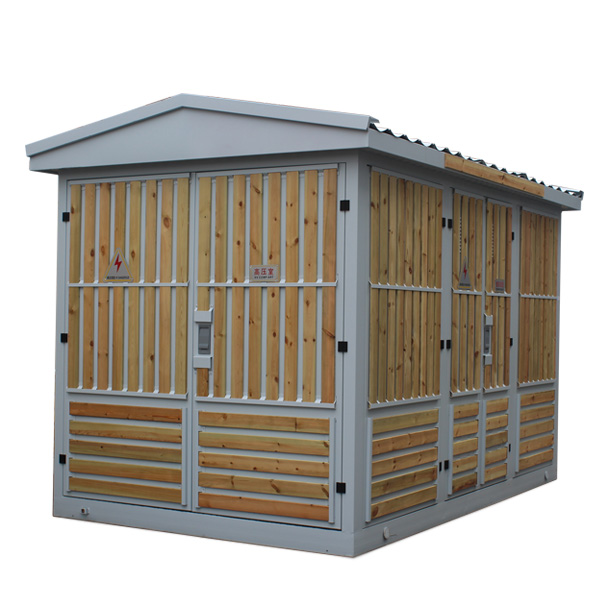

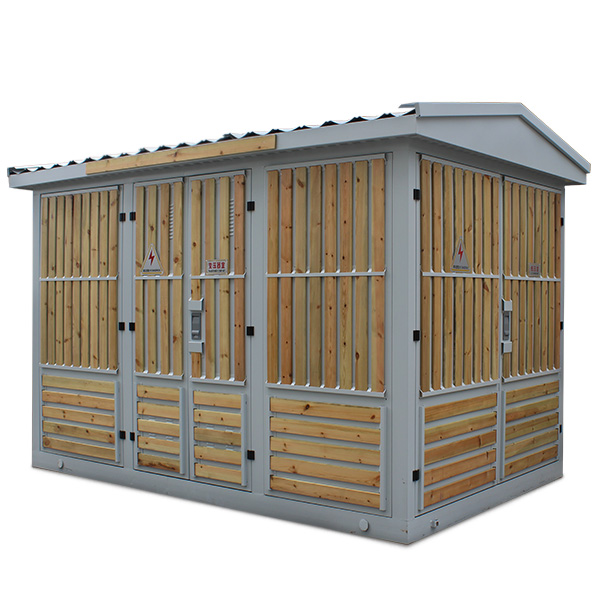

YB-12/0.4(F·R)Outdoor prefabricated substation (European style)

Short Description:

Overview
Widely used in urban power grid transformation, residential areas, high-rise buildings, industrial and mining, hotels, shopping malls, airports railway, oil fields, wharves, highways and temporary power facilities and other indoor/outdoor places.


Product Detail

Product Display

Product Tags

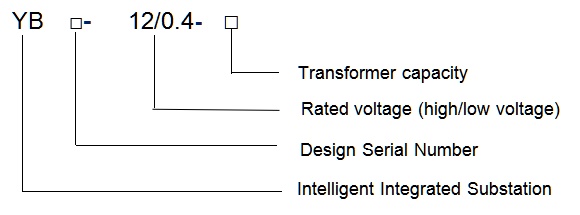

Model Meaning

图1

Functions and Features

♦ Trinity of high-voltage switchgear, transformers, low-voltage switchgear, strong sets performance;
♦ High and low voltage protection is perfect, safe and reliable operation, simple maintenance;
♦ Occupies less land, saves investment, and has a short production cycle, easy to move;
♦ Flexible wiring scheme;
♦ Unique structure: unique honeycomb structure double-layer (composite board) shell is firm, heat insulation and heat dissipation, ventilation, beautiful, high protection level, shell material is stainless steel alloy, aluminum alloy, cold-rolled plate, color steel plate optional;

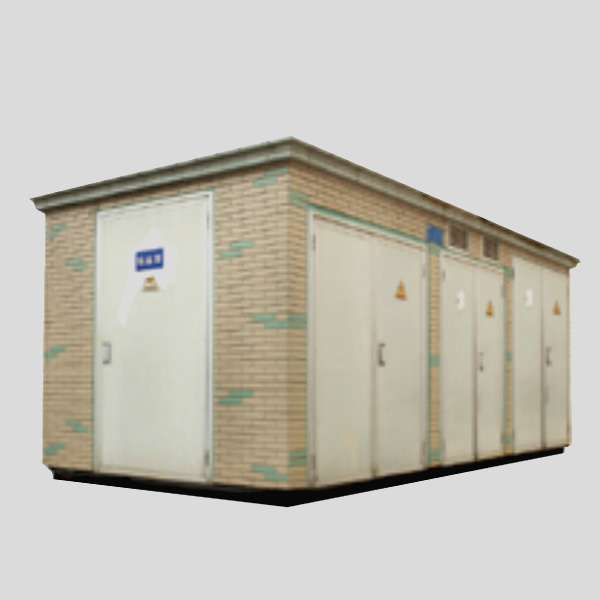

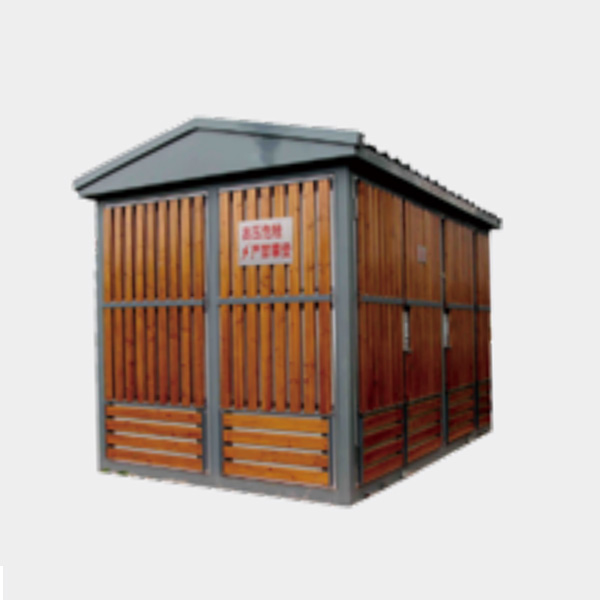

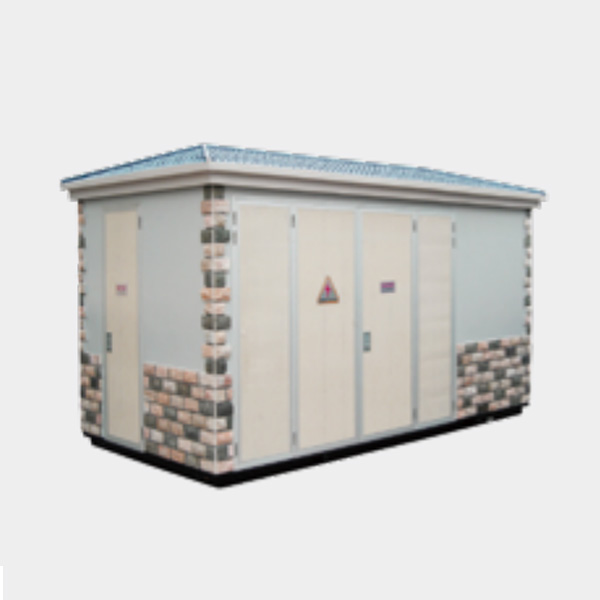

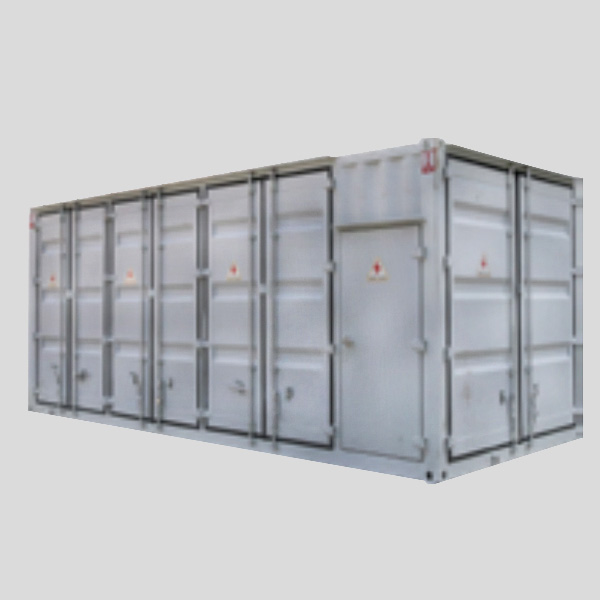

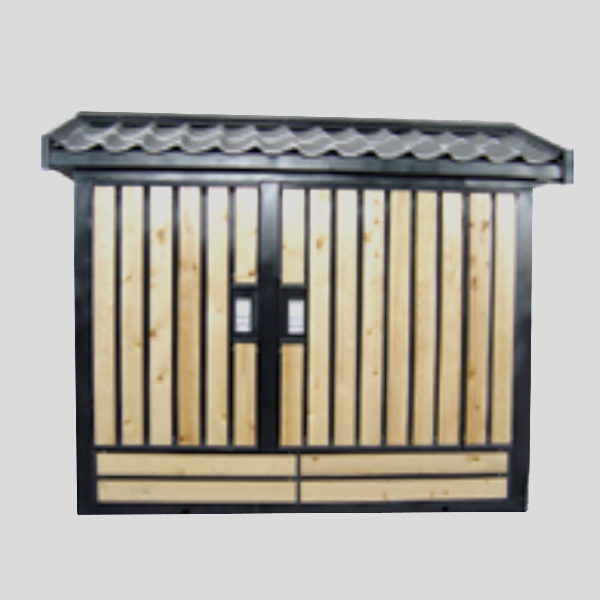

♦ Variety: general, villa, compact and other styles;
♦ The high-voltage ring network cabinet can be equipped with a network automation terminal (FTU) to achieve reliable detection of short circuits and single-phase ground faults. It has a “four remote” function, which is convenient for automatic upgrade of distribution networks.

Normal operating conditions

♦ Altitude not exceeding 2000 m;
♦ Ambient temperature :-25 C 〜+40 C;
♦ Relative humidity: daily average is not greater than 95%, monthly average is not greater than 90%;
♦ Installation place: no fire, explosion danger, conductive dust, chemical corrosive gas and violent vibration place, if beyond the above conditions, users can negotiate with our company.

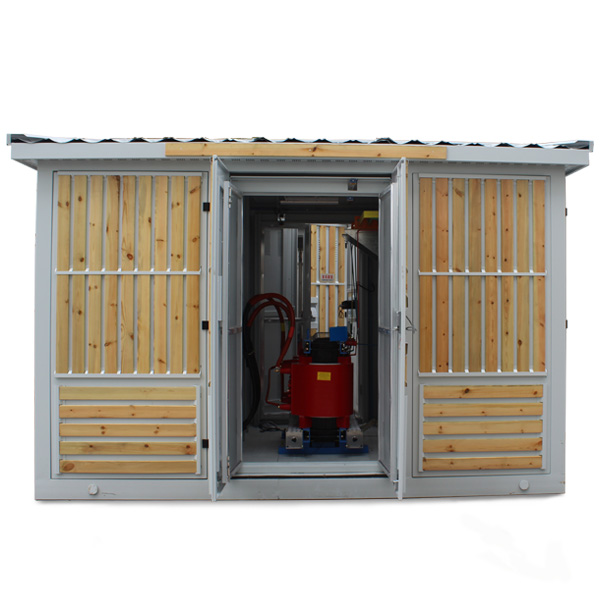

Transformer

♦ The intelligent integrated substation uses low-loss, oil-immersed, fully sealed S9, S10,
♦ S11 series transformers, also can use resin insulation or NOMEX paper insulation environmental protection dry type
♦ Transformer, the bottom can be equipped with a trolley, the transformer can easily enter and exit.

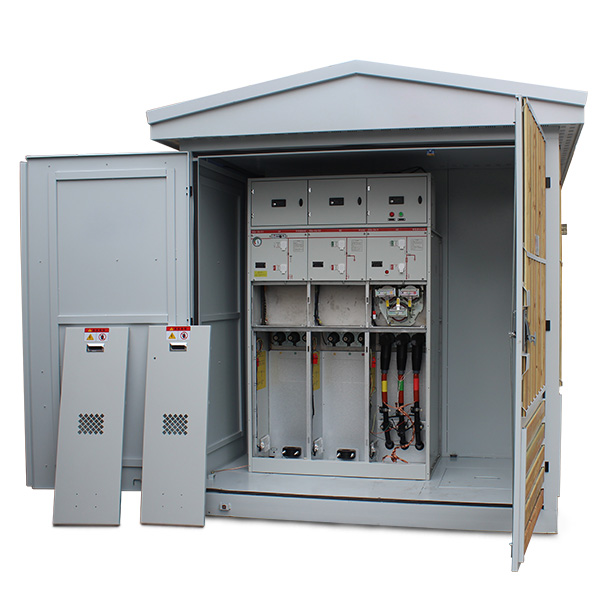

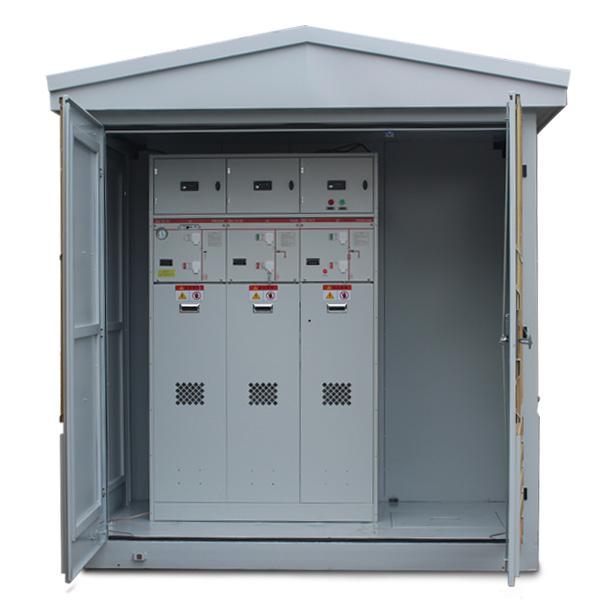

High pressure side

The high voltage of the intelligent integrated substation is generally protected by a combination of load switch and fuse. After one phase of the fuse is fused, the three-phase linkage is tripped. The load switch is available in compressed air, vacuum, sulfur hexaoxide, etc. The operating mechanism can be upgraded automatically; the fuse is a high-voltage current-limiting fuse with an impactor, which has reliable operation and large breaking capacity. The main technical parameters are shown in the table below. For transformers above 800KVA, vacuum circuit breakers such as QCE4, QCE2, QCE1 can be used for protection.

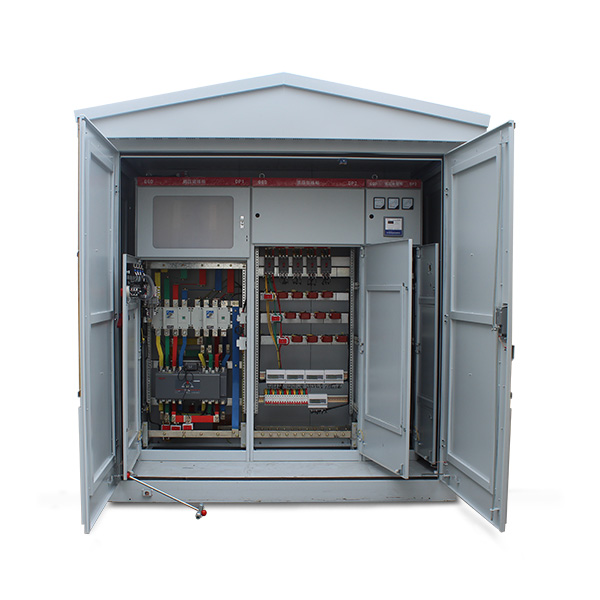

Low pressure side

The low-voltage side main switch adopts universal or intelligent circuit breaker, selective protection; the outlet switch uses a new type of plastic shell switch with small volume and short arcing, up to 30 circuits; intelligent automatic tracking reactive power compensation device, with contactor And non-contact point two switching methods for users to choose.

Execution standard

♦ This product meets the following standards;
♦ GB / T17467-1998 “High-voltage / low-voltage prefabricated substation”
♦ DL / T537-93 “Technical conditions for ordering 6-35KV box-type substation”

Technical parameters of load switch

Serial number

Name

Unit

FKN12-12 load switch

FZN25-12 vacuum load switch

1

Rated voltage

kV

10

2

Maximum operating voltage

kV

12

3

Rated frequency

Hz

50

4

Rated current

A

630

5

Rated breaking load current

A

630

6

Thermal stability current (effective value)

kA/S

20/2

20/4

7

Dynamic stable current

kA

50

50

8

Short-circuit making current (peak)

kA

50

50

9

Full load breaking times

Third

20

10000

10

Mechanical life

Third

2000

10000

11

1 min Power frequency withstand voltage (interphase and ground)

kV

42

42

12

Lightning Impulse Voltage (Relative and Ground)

kV

75

75

Technical parameters of high voltage fuses

Serial number

Rated voltage

(kV)

Breaking current

(A)

Breaking current

(kA)

melt rated current (A)

British model

Domestic models

SD L *J



12

40

31.5

 6.310 16 20 25 31.5 40

SF J *J

XRNT-12

12

100

31.5

50 63 71 80 100

SK L *J



12

125

31.5

125

*Note: Determined by whether the impactor is installed, N is without firing pin, A is with firing pin.

Serial number

Release form

Tripping device rated current A

Switching capacity KA (AC380V)

DW15-630



315,400,630

40

DW15-1000



630,800,1000

50

DW15-1600

Thermal – electromagnetic or electronic

1600

50

DW15-2500



1600,2000,2500

60

CW1-2000



630,800,1000,1250,1600,2000

65(80)

CW1-3200

Smart

2000,2500,3200

100

Installation, use and maintenance

In addition to the regulations required by the power department, the installation, acceptance, handover test, operation and maintenance of intelligent integrated transformer station should pay attention to the following matters:

The user should carefully check in accordance with the relevant regulations when receiving the goods.

Store in an appropriate place according to the conditions of normal use.

The product should be lifted with a special spreader bottom, as shown in Figure 1.

The product level is placed on the pre-made foundation, and then the gap between the product base and the foundation is sealed with cement to prevent rainwater from entering the cable room, and the high and low voltage cables are connected through the bottom sealing plate of the high and low voltage room.

After the product is installed in place, it should be reliably grounded;

The two main grounding terminals on the channel steel of the power station base,

The neutral point of the transformer, the shell, the pile head under the lightning arrester, etc. should be grounded by the installation department. All grounds should share a set of grounding devices, the grounding resistance should be less than 4 ohms, and there should be no less than two grounding leads from the grounding net to this product.

After the product is installed or repaired, the following items should be inspected and tested:

♦ whether the substation is clean;
♦ Whether the operating mechanism is flexible;
♦ Whether the on and off of main electrical appliances are flexible and reliable:
♦ Whether the auxiliary contact of electrical appliances is reliable and accurate;
♦ Whether the meter counts and the relay action is accurate;
♦ Whether the transformation ratio and wiring polarity of the instrument and transformer are correct;
♦ Whether all electrical installation nuts are tightened and whether the installation is firm and reliable;
♦ Whether the busbar connection is good, whether the supporting insulators and clamps are installed reliably;
♦ Whether the setting value of the electrical appliance meets the requirements, and whether the specifications of the fuse core are correct:
♦ Whether the contacts of the main circuit and the auxiliary circuit meet the requirements of the electrical schematic diagram.

Maintenance

All components in ◊ products are maintained in accordance with their respective technical requirements:

♦  If the selected transformer is oil-immersed, oil sample analysis and inspection shall be conducted at least once a year as required;
♦  the high voltage side switchgear in operation, after 20 times with load or 2000 times without load closing operation, the contact condition and the loss degree of arc extinguishing device should be checked, and the abnormal should be overhauled or replaced in time.
♦  After automatic tripping of low voltage switchgear, the reason of tripping should be checked and analyzed before it can be put into operation again after trouble shooting.
♦  Lightning arresters shall conduct a preventive test each year before the arrival of the thunderstorm season;

* The product is accompanied by packing list, certificate of qualification, installation instructions, electrical wiring diagram and instructions for the main components and equipment used in this product, key operating tools and spare parts provided in accordance with the agreement.

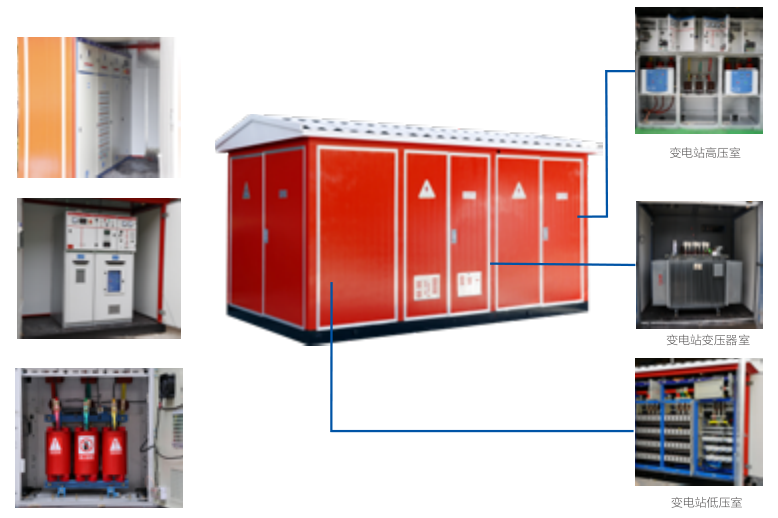

Substation Structure Chart

t02

Attached drawings Order Notes

The following information should be provided when ordering:

Substation type, number of houses; Transformer model and number of houses;
High and low voltage primary wiring scheme and the model and parameters of the main components; The material and color of the housing.
